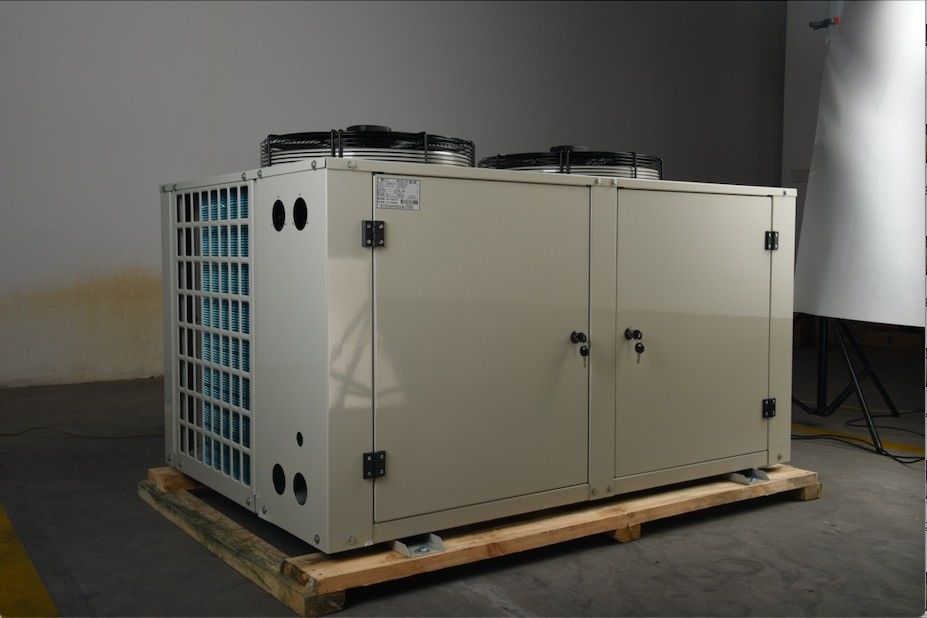

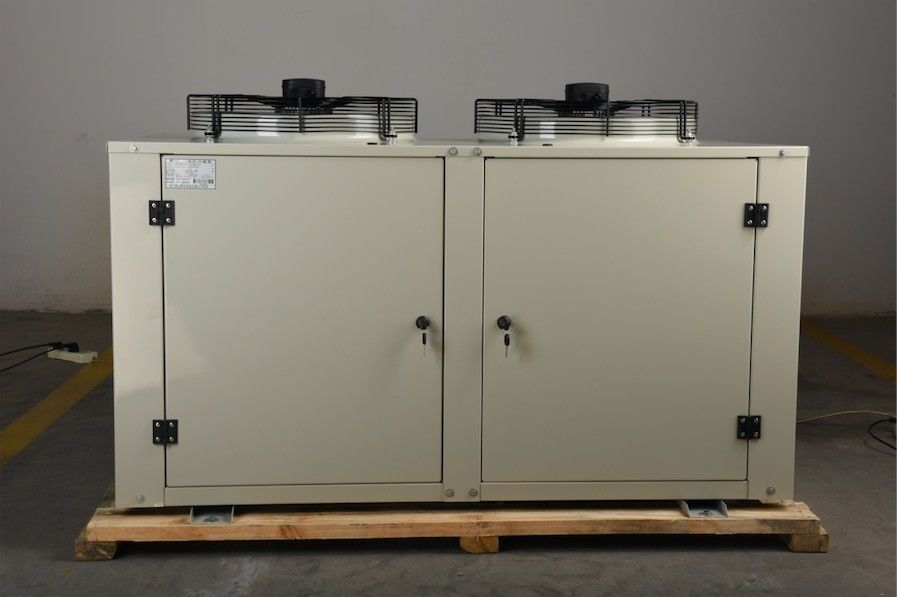

Box type condensing unit (4-40Hp) suitable for cold storage, meeting the requirements for refrigerants such as R404A, R507A, R448, R22, etc

起源の場所:

中国

ブランド名:

Kaideli

モデル番号:

連絡ください

引金を求めてください

Box type condensing unit (4-40Hp) suitable for cold storage, meeting the requirements for refrigerants such as R404A, R507A, R448, R22, etc

製品の詳細

証明:

CE, UL, ROHS, ISO9001, CCC

タイプ:

凝縮ユニット，空冷式凝縮ユニット

温度:

高温、中温、低温、8～15℃、-5～5℃、-15～-35℃

容量:

異なる設定温度に基づいて、2.3〜30.3kwの範囲です

冷却能力:

異なる設定温度に基づいて、2.1 ～ 60.1 kW の範囲になります。

馬の力:

4馬力から40馬力へ

冷媒:

R22、R404A、R507A

電圧:

380V/3相/50Hz または 220V/1相/50Hz

コンプレッサー:

Frascold セミクローズドピストンコンプレッサー

応用:

冷蔵庫

OEMサービス:

はい

提供されるアフターセールスサービス:

海外サービスなし、海外サードパーティサポートあり、海外での機械整備エンジニア常駐、オンラインサポートあり、海外サービスセンターあり

支払いと配送条件

最小注文数量

受渡し時間

1か月以内

支払条件

フォブ

関連製品

連絡ください

86-0575-83063696

今連絡してください

製品説明

BF series box-type condensing unit product overview

BF series box-type condensing units are mainly developed for cold store applications, which have the following features:
1.The main component is the semi-hermetic Frascold piston compressor imported from Italy, which features excellent performance and desirable cost-effectiveness.
2.The unit is designed for high temperature, medium temperature and low temperature applications, of which the high-temperature unit is mainly used for the cold store of 8~15 °C, and the medium-temperature unit is mainly used for the cold store of -5 ~ 5 °C, and the low-temperature unit is mainly used for the cold store of -15 ~ -35 °C;
3.It has a horizontal compact box-type structure, of which the enclosure is made of galvanized steel plate sprayed with powder coating in silver gray for excellent corrosion resistance, especially for outdoor installation and use; its chassis cover is connected with hinge structure, which is easy for operation and maintenance.
4.Designed with overall stretching large rounded high fan tube, it has the characteristics of excellent air guiding effect, low noise and aesthetic appearance.
5.The chassis panel is attached with honeycomb sound-insulation foam to effectively reduce the operating noise and sheet metal resonance of the unit.
6.The condenser is designed in U-shaped structure, with fewer pipes, large windward surface and high heat exchange efficiency.
7.Fitted with double fans in design, it can effectively reduce the noise of fan, facilitate condensing fan control and improve the operation reliability of the unit.
8.The wiring of electrical devices other than the compressor has been connected to the built-in terminal block of the unit, which is convenient for wiring.
9.It is compatible with R404A, R507A, R448, R449, R22 and other refrigerants.

Unit Configuration

Medium-temperature and high-temperature unit

Com

Components	Unit model
	BF04HY	BF05HY	BF07HY	BF12HY	BF15HY	BF20HY
	BF04MY	BF05MY	BF07MY	BF12MY	BF15MY	BF20MY	BF25MY	BF30MY	BF35MY
Semi-hermetic compressor	●	●	●	●	●	●	●	●	●
Oil heating band	●	●	●	●	●	●	●	●	●
Exhaust damping pipe	○	○	○	●	●	●	●	●	●
Oil separator	○	○	○	●	●	●	●	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●	●
Reservoir outlet shut-off valve	●	●	●	●	●	●	●	●	●
Dry filter	●	●	●	●	●	●	●	●	●
Sight glasses	●	●	●	●	●	●	●	●	●
High/low-pressure protection	●	●	●	●	●	●	●	●	●
Electronic oil pressure(oil level)protection	○	○	○	○	○	○	●	●	●
High/low-pressure gauge	●	●	●	●	●	●	●	●	●
Refrigerant solenoid valve	○	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○	○
Low pressure control (vent shutdown)	○	○	○	○	○	○	○	○	○
Note:●Standard components,○ Optional component,/Not available

○

Low-temperature unit

Componen

Components	Unit model
Components	BF04LY	BF05LY	BF08LY	BF10LY	BF15LY	BF20LY	BF25LY	BF30LY	BF40LY
Semi-hermetic compressor	●	●	●	●	●	●	●	●	●
Oil heating band	●	●	●	●	●	●	●	●	●
Exhaust damping pipe	○	○	●	●	●	●	●	●	●
Oil separator	○	○	●	●	●	●	●	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●	●
Reservoir outlet shut-off valve	●	●	●	●	●	●	●	●	●
Dry filter	●	●	●	●	●	●	●	●	●
Sight glasses	●	●	●	●	●	●	●	●	●
High/low-pressure protection	●	●	●	●	●	●	●	●	●
Electronic oil pressure(oil level)protection	○	○	○	○	●	●	●	●	●
High/low-pressure gauge	●	●	●	●	●	●	●	●	●
Refrigerant solenoid valve	○	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○	○
Low pressure control (vent shutdown)	○	○	○	○	○	○	○	○	○
Note:●Standard components,○ Optional component,/Not available

Support and Services

Our Cold Room Condensing Unit product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with installation, maintenance, troubleshooting, and any technical queries you may have. Additionally, we offer training programs and resources to help you maximize the efficiency and longevity of your unit. Rest assured that with our dedicated technical support, you can confidently rely on the performance and durability of our Cold Room Condensing Unit.
