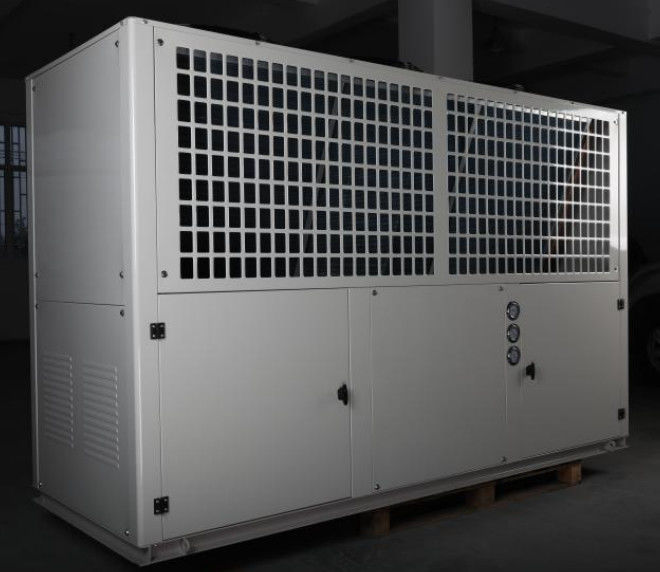

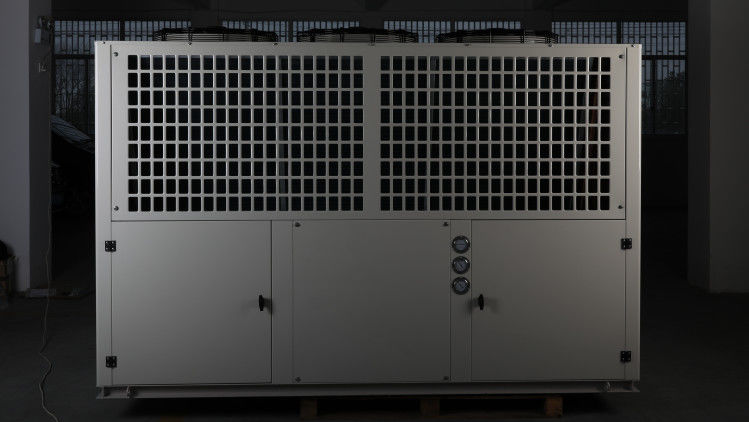

A box type condensing unit suitable for outdoor use and easy to operate, meeting the needs of refrigerants such as R404A, R507A, R448, R22, etc

起源の場所:

中国

ブランド名:

Kaideli

モデル番号:

連絡ください

引金を求めてください

A box type condensing unit suitable for outdoor use and easy to operate, meeting the needs of refrigerants such as R404A, R507A, R448, R22, etc

製品の詳細

証明:

CE, UL, ROHS, ISO9001, CCC

タイプ:

凝縮ユニット，空冷式凝縮ユニット

温度:

中温、低温、-2～5℃、-15～-35℃

容量:

異なる設定温度に基づいて、5.3〜25.3kwの範囲です

冷却能力:

異なる設定温度に基づいて、10.6 ～ 59.8 kW の範囲になります。

馬の力:

8馬力から30馬力へ

冷媒:

R22、R404A、R507A

電圧:

380V/3相/50Hz または 220V/1相/50Hz

コンプレッサー:

エマソンスクロールコンプレッサー

応用:

冷蔵室冷凍室、冷凍・化学工業、ミニチュア冷蔵室、ブラスト冷凍室、各種冷蔵室

OEMサービス:

はい

提供されるアフターセールスサービス:

海外サービスなし、海外サードパーティサポートあり、海外での機械整備エンジニア常駐、オンラインサポートあり、海外サービスセンターあり

支払いと配送条件

最小注文数量

受渡し時間

1か月以内

支払条件

フォブ

関連製品

連絡ください

86-0575-83063696

今連絡してください

製品説明

TE series box-type condensing unit product overview

TE series condensing unit is equipped with Emerson scroll compressor as the main component, which is designed with double-layer and large box structure; this series of products have the following features:
1.The compressor is Emerson medium-temperature ZB series compressor and low-temperature ZFI series compressor with EVI.
2.The unit is designed for medium temperature and low temperature applications, of which the medium-temperature unit is mainly used for the cold store of -2 ~ 5 °C, and the low-temperature unit is mainly used for the cold store of -15 ~ -35 °C.
3.The enclosure is made of galvanized steel plate sprayed with powder coating in silver gray for excellent corrosion resistance, quite suitable for outdoor use; it is designed with double-layer structure, namely upper and lower, which has a large operating space and is convenient to clean the condenser and chassis; the compressor's chassis cover is connected with hinge structure, which is convenient for operation and maintenance.
4.The chassis panel is attached with honeycomb sound-insulation foam to effectively reduce the operating noise and sheet metal resonance of the unit.
5.The fan tube is designed with overall stretching large rounded high air tube, it has the characteristics of excellent air guiding effect, low noise and aesthetic appearance.
6.The condenser is designed in U-shaped structure, with fewer pipes, large air intake area and high heat exchange efficiency.
7.Fitted with double fans in design, it can effectively reduce the noise of fan, facilitate condensing fan control and improve the operation reliability of the unit;
8.It is compatible with R404A, R507A, R448, R449, R22 and other refrigerants.

Unit Configuration

Medium-temperature and high-temperature uni

Unit model
TE08M	TE09M	TE10M	TE12M	TE13M	TE15M	TE20M	TE22M	TE25M	TE30M
Scroll compressor(welded joint)	●	●	●	●	●	●	●	●	●	●
Oil heating band	●	●	●	●	●	●	●	●	●	●
Exhaust damping pipe	○	○	○	○	○	○	●	●	●	●
Oil separator	○	○	○	○	○	○	●	●	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●	●	●
Reservoir outlet shut-off valve	●	●	●	●	●	●	●	●	●	●
Dry filter	●	●	●	●	●	●	●	●	●	●
Sight glasses	●	●	●	●	●	●	●	●	●	●
Gas-liquid separator	○	○	○	○	○	○	○	○	○	○
High/low-pressure protection	●	●	●	●	●	●	●	●	●	●
High/low-pressure gauge	●	●	●	●	●	●	●	●	●	●
Refrigerant solenoid valve	○	○	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○	○	○
Low pressure control (vent shutdown)	○	○	○	○	○	○	○	○	○	○

○

Note:●Standard components,○ Optional component,/Not available

Low-temperature unit

Components	Unit model
Components	TE08LY	TE10LY	TE12LY	TE15LY	TE18LY	TE20LY	TE25LY	TE30LY
Scroll compressor (EVl)	●	●	●	●	●	●	●	●
Oil heating band	●	●	●	●	●	●	●	●
Exhaust damping pipe	○	○	○	○	○	○	●	●
Gas-liquid sepatator	○	○	○	○	○	○	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●
Reservoir outlet shut-off valve	●	●	●	●	●	●	●	●
Dry filter	●	●	●	●	●	●	●	●
Sight glasses	●	●	●	●	●	●	●	●
Gas-liquid separator	○	○	○	○	○	○	○	○
High/low-pressure protection	●	●	●	●	●	●	●	●
High/low-pressure gauge	●	●	●	●	●	●	●	●
(Subcooling) solenoid valve	●	●	●	●	●	●	●	●
(Subcooling) expansion valve	●	●	●	●	●	●	●	●
Subcooling exchange plate	●	●	●	●	●	●	●	●
Refrigerant solenoid valve	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○
Low pressure control (vent shutdown)	○	○	○	○	○	○	○	○

Note:●Standard components,○ Optional component,/Not available

Support and Services

Our Cold Room Condensing Unit product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with installation, maintenance, troubleshooting, and any technical queries you may have. Additionally, we offer training programs and resources to help you maximize the efficiency and longevity of your unit. Rest assured that with our dedicated technical support, you can confidently rely on the performance and durability of our Cold Room Condensing Unit.
