起源の場所:
中国
ブランド名:
Kaideli
証明:
CE,ISO9001-2008
モデル番号:
KUDD
Product name: ISO9001 50hz Axial Cold Room Air Cooler Evaporator DD Series

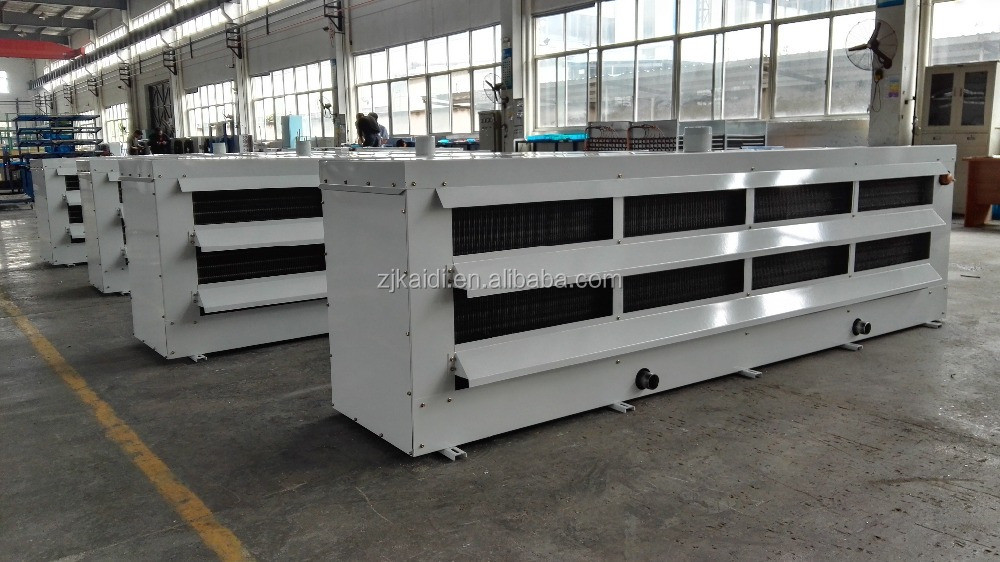

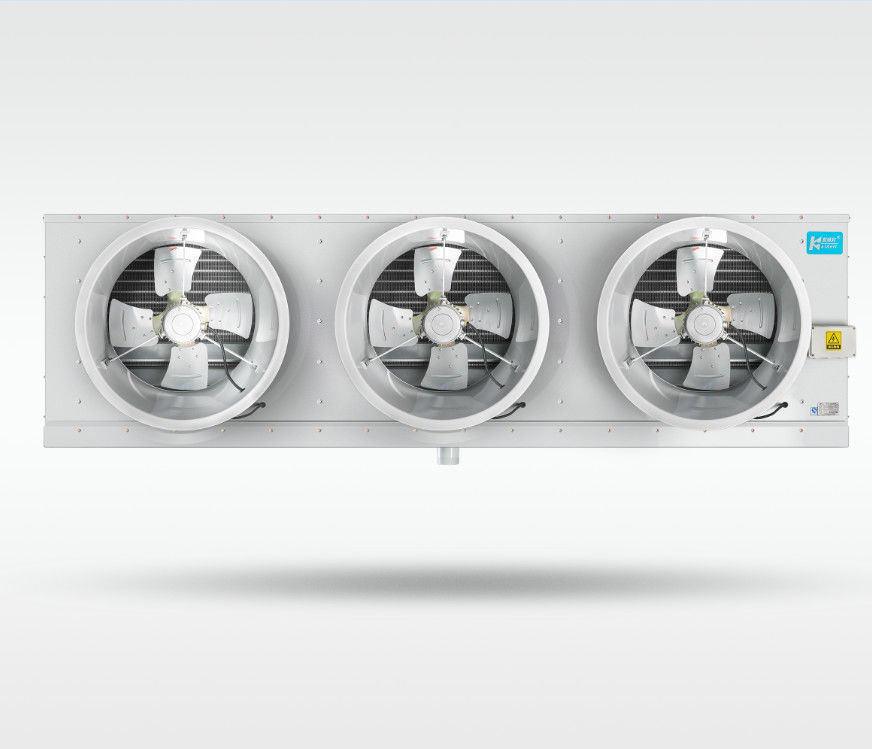

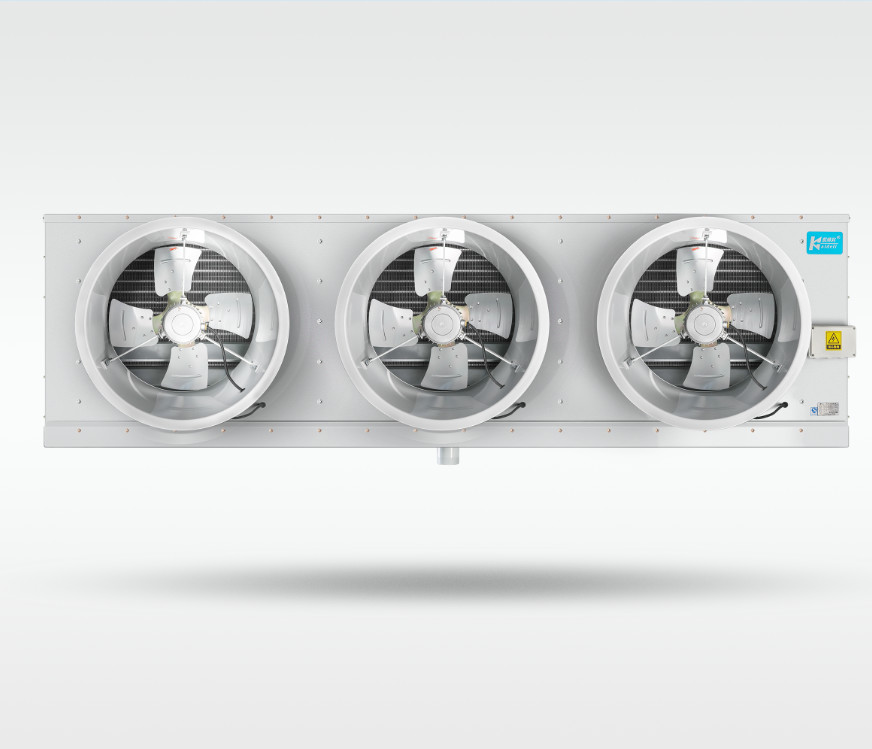

1. Evaporator parts pictures
All the parts copper,fan, fin and outside we choose famous brand,also can customize:
2.Specification
Nomination:KUDL016-W2C
K(Kaideli)U(unit cooler)D(ceiling type)L/D/J(high/medium/low temp.)016(area of cooling surface)
-W(water defrost)2/3/4(fan quantity)C(design type)
| DL-High temperature type (cold room temperature 12℃~-2℃)fin space: 4.5mm | ||||||||||
| Model | Capacity | Area | Qty | FanΦ | Airflow | Air press | Shot range | Power | Defrost flow | Vol |
| (kW) | (m2) | (mm) | (m2/h) | (pa) | (m) | (W) | (m³/h) | (V) | ||
| KUDL060-W2C | 12.9 | 60 | 2 | 400 | 2×3400 | 90 | 13 | 2×180 | 0.8 | 380 |
| KUDL080-W2C | 17.2 | 80 | 2 | 500 | 2×6570 | 90 | 15 | 2×450 | 1.3 | 380 |
| KUDL105-W2C | 22.5 | 105 | 2 | 500 | 2×6570 | 90 | 15 | 2×450 | 1.7 | 380 |
| KUDL135-W3C | 29 | 135 | 3 | 500 | 3×6570 | 90 | 15 | 3×450 | 2.1 | 380 |
| KUDL160-W3C | 34.4 | 160 | 3 | 500 | 3×6570 | 90 | 15 | 4×450 | 2.5 | 380 |
| KUDL185-W4C | 39.7 | 185 | 4 | 500 | 4×6570 | 90 | 15 | 4×450 | 2.9 | 380 |
| KUDL210-W4C | 45.1 | 210 | 4 | 500 | 4×6570 | 90 | 15 | 4×450 | 3.4 | 380 |
| KUDL260-W3C | 55.9 | 260 | 3 | 550 | 3×8720 | 90 | 15 | 4×600 | 4.2 | 380 |
| KUDL330-W4C | 70.9 | 330 | 4 | 550 | 4×8720 | 90 | 15 | 4×600 | 5.3 | 380 |
| KUDL400-W4C | 86 | 400 | 4 | 600 | 4×10820 | 120 | 15 | 4×780 | 6.3 | 380 |
| KUDL210-W2TC | 45.1 | 210 | 2 | 600 | 2×12000 | 200 | 20 | 2×1500 | 3.4 | 380 |
| KUDL260-W2TC | 55.9 | 260 | 2 | 600 | 2×12000 | 200 | 20 | 2×1500 | 4.2 | 380 |
| KUDL330-W3TC | 70.9 | 330 | 3 | 600 | 3×12000 | 200 | 20 | 3×1500 | 5.3 | 380 |
| KUDL400-W3TC | 86 | 400 | 3 | 600 | 3×12000 | 200 | 20 | 3×1500 | 6.3 | 380 |
| KUDL500-W3TC | 107.5 | 500 | 3 | 600 | 3×12000 | 200 | 20 | 3×1500 | 7.8 | 380 |
| KUDL600-W4TC | 129 | 600 | 4 | 600 | 4×12000 | 200 | 20 | 4×1500 | 9.5 | 380 |
| KUDL640-W4TC | 137.6 | 640 | 4 | 600 | 4×12000 | 200 | 20 | 4×1500 | 10 | 380 |
| KUDL700-W4TC | 150.5 | 700 | 4 | 600 | 4×12000 | 200 | 20 | 4×1500 | 10.9 | 380 |
| DD-Medium temperature type (cold room temperature -2℃~-10℃)fin space: 6.0mm | ||||||||||
| Model | Capacity | Area | Qty | Fan Φ | Airflow | Air press | Shot range | Power | Defrost flow | Vol |
| (kW) | (m2) | (mm) | (m2/h) | (pa) | (m) | (W) | (m³/h) | (V) | ||
| KUDD040-W2C | 7.8 | 40 | 2 | 400 | 2×3400 | 90 | 13 | 2×180 | 0.8 | 380 |
| KUDD060-W2C | 11.7 | 60 | 2 | 500 | 2×6570 | 90 | 15 | 2×450 | 1.3 | 380 |
| KUDD080-W2C | 15.6 | 80 | 2 | 500 | 2×6570 | 90 | 15 | 2×450 | 1.7 | 380 |
| KUDD100-W3C | 19.5 | 100 | 3 | 500 | 3×6570 | 90 | 15 | 3×450 | 2.1 | 380 |
| KUDD120-W3C | 23.4 | 120 | 3 | 500 | 3×6570 | 90 | 15 | 4×450 | 2.5 | 380 |
| KUDD140-W4C | 27.3 | 140 | 4 | 500 | 4×6570 | 90 | 15 | 4×450 | 2.9 | 380 |
| KUDD160-W4C | 31.2 | 160 | 4 | 500 | 4×6570 | 90 | 15 | 4×450 | 3.4 | 380 |
| KUDD200-W3C | 39 | 200 | 3 | 550 | 3×8720 | 90 | 15 | 4×600 | 4.2 | 380 |
| KUDD250-W4C | 48.7 | 250 | 4 | 550 | 4×8720 | 90 | 15 | 4×600 | 5.3 | 380 |
| KUDD300-W4C | 58.5 | 300 | 4 | 600 | 4×10820 | 120 | 15 | 4×780 | 6.3 | 380 |
| KUDD160-W2TC | 31.2 | 160 | 2 | 600 | 2×12000 | 200 | 20 | 2×1500 | 3.4 | 380 |
| KUDD200-W2TC | 39 | 200 | 2 | 600 | 2×12000 | 200 | 20 | 2×1500 | 4.2 | 380 |
| KUDD250-W3TC | 48.7 | 250 | 3 | 600 | 3×12000 | 200 | 20 | 3×1500 | 5.3 | 380 |
| KUDD300-W3TC | 58.5 | 300 | 3 | 600 | 3×12000 | 200 | 20 | 3×1500 | 6.3 | 380 |
| KUDD370-W3TC | 72.1 | 370 | 3 | 600 | 3×12000 | 200 | 20 | 3×1500 | 7.8 | 380 |
| KUDD450-W4TC | 87.7 | 450 | 4 | 600 | 4×12000 | 200 | 20 | 4×1500 | 9.5 | 380 |
| KUDD480-W4TC | 93.6 | 480 | 4 | 600 | 4×12000 | 200 | 20 | 4×1500 | 10 | 380 |
| KUDD520-W4TC | 101.4 | 520 | 4 | 600 | 4×12000 | 200 | 20 | 4×1500 | 10.9 | 380 |
| DJ- Low temperature type (cold room temperature -10℃~-31℃)fin space: 9.0mm | ||||||||||
| Model | Capacity | Area | Qty | Fan Φ | Airflow | Air press | Shot range | Power | Defrost flow | Vol |
| (kW) | (m2) | (mm) | (m2/h) | (pa) | (m) | (W) | (m³/h) | (V) | ||
| KUDJ030-W2C | 5.1 | 30 | 2 | 400 | 2×3400 | 90 | 13 | 2×180 | 0.8 | 380 |
| KUDJ040-W2C | 6.8 | 40 | 2 | 500 | 2×6570 | 90 | 15 | 2×450 | 1.3 | 380 |
| KUDJ055-W2C | 9.3 | 55 | 2 | 500 | 2×6570 | 90 | 15 | 2×450 | 1.7 | 380 |
| KUDJ070-W3C | 11.9 | 70 | 3 | 500 | 3×6570 | 90 | 15 | 3×450 | 2.1 | 380 |
| KUDJ085-W3C | 14.4 | 85 | 3 | 500 | 3×6570 | 90 | 15 | 4×450 | 2.5 | 380 |
| KUDJ100-W4C | 17 | 100 | 4 | 500 | 4×6570 | 90 | 15 | 4×450 | 2.9 | 380 |
| KUDJ115-W4C | 19.5 | 115 | 4 | 500 | 4×6570 | 90 | 15 | 4×450 | 3.4 | 380 |
| KUDJ140-W3C | 23.8 | 140 | 3 | 550 | 3×8720 | 90 | 15 | 4×600 | 4.2 | 380 |
| KUDJ170-W4C | 28.9 | 170 | 4 | 550 | 4×8720 | 90 | 15 | 4×600 | 5.3 | 380 |
| KUDJ210-W4C | 35.7 | 210 | 4 | 600 | 4×10820 | 120 | 15 | 4×780 | 6.3 | 380 |
| KUDJ115-W2TC | 19.5 | 115 | 2 | 600 | 2×12000 | 200 | 20 | 2×1500 | 3.4 | 380 |
| KUDJ140-W2TC | 23.8 | 140 | 2 | 600 | 2×12000 | 200 | 20 | 2×1500 | 4.2 | 380 |
| KUDJ170-W3TC | 28.9 | 170 | 3 | 600 | 3×12000 | 200 | 20 | 3×1500 | 5.3 | 380 |
| KUDJ210-W3TC | 35.7 | 210 | 3 | 600 | 3×12000 | 200 | 20 | 3×1500 | 6.3 | 380 |
| KUDJ250-W3TC | 42.5 | 250 | 3 | 600 | 3×12000 | 200 | 20 | 3×1500 | 7.8 | 380 |
| KUDJ300-W4TC | 51 | 300 | 4 | 600 | 4×12000 | 200 | 20 | 4×1500 | 9.5 | 380 |
| KUDJ320-W4TC | 54.4 | 320 | 4 | 600 | 4×12000 | 200 | 20 | 4×1500 | 10 | 380 |
| KUDJ350-W4TC | 59.5 | 350 | 4 | 600 | 4×12000 | 200 | 20 | 4×1500 | 10.9 | 380 |
How to select correct evaparator:
Generally,Choose evaporator capacity=cold room cooling capacity *1.15
1.When the cold room temperature is around 0℃, select 4.5mm as fin space.
Evaporator choose=1.0*Q0
2.When the cold room temperature is around -18℃, select 6mm as fin space.
Evaparator choose=1.1*Q0
3.When the cold room temperature is around -25℃, select 9mm as fin space.
Evaparator choose=1.27*Q0
Remarks: The electric defrost and hot gas defrost type are also optional.
3.Want to know other related products?-click picture for detailed specification
4.How to assure quality? Any procedure?
Our QC department will make sure of each step
5.Do you factory?
We are factory established in 1995 and through 28years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.
6.Do you attend exhibition?
Each year we will attend domestic national and foreign exhibition,also we will support our agent to attend exhibition,welcome to join us.
7.Why choose us
Professional:28 years focus one thing-refrigeration equipments
Material we use sufficient
Certificate:CE, ISO, and cetiifcate of producing special pressure equipment
8.Projects reference?
9.FAQ
1, Q:Where is your factory address?
A:We are factory and located in refrigeration equipment producing base Shengzhou,Zhejiang province.
2, Q: What is your package?
A: Our package comply to custom require not include original wood.
3, Q:What is your MOQ?
A: Ordinary products can order from 1 set.
4, Q: Can you offer sample?
A: Yes,we can offer sample.and cost and delivery at your charge.
5, Q:I can't find products on your list?
A: Please contact me directly.
6,Q:How can i confirm your factory?
A: We have third party verified document of Bureau Veritas report,you can download in company page or leave me message to get.
